Supplier Import

Introduction

This will import VISN suppliers for UK and Ireland.

download sample supplier import file.

Fields

Visn Supplier Import

Column Position	Header Name	Description	Datatype	Validation	Max length	Mandatory	Default Value	Example
A	DI Group ID	Id of the Group	string	A-Z, 0-9 and all special characters	30	No		ymaA5vcxNWOwzKOdvIMA
B	DI Supplier ID	Id of the Supplier	string	A-Z and 0-9	20	No		lpEfZekDPAabVoyzcFxM
C	ERP Garage ID	External Rate Provider Garage ID	Number	0-9	-	No		1900
D	ERP Garage Group ID	External Rate Provider Garage Group ID	Number	0-9	-	No		768
E	Locale	Locale of the supplier	string	en_GB(The string should be en_GB for uk supplier) or en_IE(The string should be en_IE for Ireland supplier)	-	Yes		en_GB
F	Group ID	Group ID of the supplier	string	A-Z and 0-9	20	Yes		DIVSN10024
G	has FNP	FNB Availability Status	string	Y or N	1	No	N	Y
H	FNP Band	FNP band value	String	Band 1 LA1, Band 2 LA1, Band 3 LA1, Band 5 (M25) LA1, Band 1 LA2, Band 2 LA2, Band 3 LA2, Band 5 (M25) LA2, Band 1 LA3, Band 2 LA3, Band 3 LA3, Band 5 (M25) LA3, Ford Region 22, Ford Region 23, NONE	20	Yes	NONE	Band 1 LA1
I	Supplier Group Name	Group Name of the supplier	string	A-Z ,0-9 and all special characters	50	Yes		Bellinger & Sons Vauxhall Wantage
J	Supplier ID	Id of the supplier	string	A-Z ,0-9	20	No		AD13HBG
K	Supplier Name	Name of the supplier	string	A-Z ,0-9 and all special characters	50	No		Ancaster Dartford Renault
L	Paybill	Determines how the suppliers are paid. ViSN Hybrid - Customer's Network and DI Network with Paybill. VISN - Digital INNK will pay the supplier for this customer DIRECT - Customer will pay the supplier directly ViSN with DI Network and Paybill- Digital INNK will pay the suppliers External Rate Provider Paybill - External Rate Provider will pay the suppliers	string	VISN or DIRECT	-	Yes		VISN
M	VAT Registration Number	VAT Registration Number	string	A-Z ,0-9	20	No		VAT1234
N	Company Number	Company Number	string	A-Z ,0-9	20	No		CMP1234
O	Nominated Dealer Manager	Nominated Dealer Manager	string	A-Z ,0-9, hyphen and space	20	Yes		Steve Philips
P	Address 1	Building Number	string	A-Z ,0-9 and all special characters	20	No		88
Q	Address 2	Address 2	string	A-Z ,0-9 and all special characters	50	No		Plaistow Lane
R	Address 3	Address 3	string	A-Z ,0-9 and all special characters	50	No		Bromley
S	Address 4	Address 4	string	A-Z ,0-9 and all special characters	50	No		Kent
T	Address 5	Address 5	string	A-Z ,0-9 and all special characters	50	No		Middlesex
U	Postcode	Postcode	string	Standard UK and Ireland postcode validation	-	Yes		SE20 7TF
V	Custom weekday opening hours	Opening Time (weekday)	string	24hr time format	5	No		09:00
W	Custom Weekday closing hours	Closing Time (weekday)	string	24hr time format	5	No		17:30
X	Custom Sat opening hours	Saturday opening time	string	24hr time format	5	No		09:30
Y	Custom Sat closing hours	Saturday closing time	string	24hr time format	5	No		12:30
Z	Open on Sunday	Is opening on sunday?	string	Y or N	1	No	N	Y
AA	Custom Sun Opening hours	Sunday opening time	string	24hr time format	5	No		09:30
AB	Custom Sun Closing hours	Sunday closing time	string	24hr time format	5	No		11:30
AC	Region 1	Region 1	string	A-Z ,0-9, hyphen and space	50	No		Evans Halshaw
AD	Region 2	Region 2	string	A-Z ,0-9, hyphen and space	50	No		East Sussex
AE	Region 3	Region 3	string	A-Z ,0-9, hyphen and space	50	No		BrightonCCC
AF	Primary Phone Number	Primary Phone Number	string	A-Z ,0-9 and all special characters	20	Yes		02082 908700
AG	Booking Phone Number	Booking Phone Number	string	A-Z ,0-9 and all special characters	20	No		02082 908700
AH	Fax Number	Fax Number	string	A-Z ,0-9 and all special characters	20	No		02087 689200
AI	email	email of the supplier	string	A-Z ,0-9 and all special characters	100	No		vishwa@digitalinnk.com
AJ	description	description	string	A-Z ,0-9 and all special characters	50	No		supplier from Chelmsford
AK	notes	notes	string	A-Z ,0-9 and all special characters	20	No		Notes
AL	Max Height	Max Height	string	A-Z ,0-9,underscore,hyphen and plus sign	20	No		+123
AM	Max Length	Max Length	string	A-Z ,0-9,underscore,hyphen and plus sign	20	No		-58
AN	Max Weight	Max Weight	string	A-Z ,0-9,underscore,hyphen and plus sign	20	No		77
AO	Last Physical Audit	Last Physical Audit	-	No Validation available for this field	-	No		-
AP	Last Desktop Audit	Last Desktop Audit	-	No Validation available for this field	-	No		-
AQ	Ancillary equipment servicing & repairs	Ancillary equipment servicing & repairs (tail lift, flashing beacon, refrigeration units)	string	Y or N	1	No	N	Y
AR	Engine Rebuild	Engine Rebuild	string	Y or N	1	No	N	Y
AS	DPF filters	DPF filters	string	Y or N	1	No	N	Y
AT	LOLER (Weight testing)	LOLER (Weight testing)	string	Y or N	1	No	N	Y
AU	Mis-fueling	Mis-fueling	string	Y or N	1	No	N	Y
AV	Replacement keys & door locks	Replacement keys & door locks	string	Y or N	1	No	N	Y
AW	Smart repairs (to bodywork)	Smart repairs (to bodywork)	string	Y or N	1	No	N	Y
AX	Collection Del	Collection Del	string	Y or N	1	No	N	Y
AY	Collection NTD	Collection NTD	string	Y or N	1	No	N	Y
AZ	Collection Lead Time	Collection Lead Time	Number	0-9	2	No		44
BA	Collection Radius	Collection Radius	Number	0-9	2	No		22
BB	Collection Notes	Collection Notes	string	A-Z ,0-9 and all special characters	30	No		Collection Notes
BC	Courtesy Car	Courtesy Car	string	Y or N	1	No		Y
BD	Courtesy Car Ntd	Courtesy Car Ntd	string	Y or N	1	No	N	Y
BE	Courtesy Car Lead Time	Courtesy Car Lead Time	Number	0-9	2	No		22
BF	Courtesy Car Notes	Courtesy Car Notes	string	A-Z ,0-9 and all special characters	30	No		Notes about courtesy car service
BG	While You Wait	While You Wait	string	Y or N	1	No	N	Y
BH	While You Wait NTD	While You Wait NTD	string	Y or N	1	No	N	Y
BI	While You Wait Lead Time	While You Wait Lead Time	Number	0-9	2	No		22
BJ	While You Wait Notes	While You Wait Notes	string	A-Z ,0-9 and all special characters	30	No		Notes about while you wait service
BK	Drop Off	Drop Off	string	Y or N	1	No	N	Y
BL	Drop Off NTD	Drop Off NTD	string	Y or N	1	No	N	Y
BM	Drop Off Lead Time	Drop Off Lead Time	Number	0-9	2	No		43
BN	Out Of Hours	Out Of Hours	string	Y or N	1	No	N	Y
BO	Mobile	Mobile	string	Y or N	1	No	N	Y
BP	Mobile Lead Time	Mobile Off Lead Time	Number	0-9	2	No		43
BQ	Mobile Radius	Mobile Radius	Number	0-9	3	No		43
BR	Franchise	Franchise	string	A-Z ,0-9 and all special characters	30	Yes		All
BS	Independent	Independent	string	Y or N	1	No	N	Y
BT	Is On ViSN	Is On ViSN	string	Y or N	1	No	N	Y
BU	Bosch Status	Bosch Status	string	A-Z ,0-9	8	No		-
BV	Franchise Preference Code	Franchise Preference Code	string	A-Z ,0-9 and all special characters	8	No		P
BW	Franchise Preference Name	Franchise Preference Name	string	A-Z ,0-9 and all special characters	30	No		Preferred Franchise
BX	Labour Car	Labour Car	string	0-9 and .(decimal number)	6	No		4.5
BY	Labour Rate LCV	Labour Rate LCV	string	0-9 and .(decimal number)	6	No		4.5
BZ	Labour Rate EV	Labour Rate EV	string	0-9 and .(decimal number)	6	No		4.5
CA	Parts Discount	Parts Discount	string	0-9 and .(decimal number)	5	No		94.5
CB	MOT Class1	MOT Class1	string	0-9, .(three digit decimal number)	6	No		941.5
CC	MOT Class2	MOT Class2	string	0-9, .(three digit decimal number)	6	No		941.5
CD	MOT Class3	MOT Class3	string	0-9, .(three digit decimal number)	6	No		941.5
CE	MOT Class4	MOT Class4	string	0-9, .(three digit decimal number)	6	No		941.5
CF	MOT Class5	MOT Class5	string	0-9, .(three digit decimal number)	6	No		941.5
CG	MOT Class7	MOT Class7	string	0-9, .(three digit decimal number)	6	No		941.5
CH	Semi Synthetic1	Semi Synthetic1	string	0-9 and .(decimal number)	6	No		4.5
CI	Semi Synthetic2	Semi Synthetic2	string	0-9 and .(decimal number)	6	No		4.5
CJ	Synthetic1	Synthetic1	string	0-9 and .(decimal number)	6	No		4.5
CK	Synthetic2	Synthetic2	string	0-9 and .(decimal number)	6	No		4.5
CL	Synthetic3	Synthetic3	string	0-9 and .(decimal number)	6	No		4.5
CM	Ad Blue	Ad Blue	string	0-9 and .(decimal number)	6	No		4.5
CN	Brake Fluid	Brake Fluid	string	0-9 and .(decimal number)	6	No		4.5
CO	Air Conditioning Coolant	Air Conditioning Coolant	string	0-9 and .(decimal number)	6	No		4.5
CP	Anti Freeze	Anti Freeze	string	0-9 and .(decimal number)	6	No		4.5
CQ	Automatic Transmission Fluid	Automatic Transmission Fluid	string	0-9 and .(decimal number)	6	No		4.5
CR	Axle Oil	Axle Oil	string	0-9 and .(decimal number)	6	No		4.5
CS	Gearbox Oil Mineral	Gearbox Oil Mineral	string	0-9 and .(decimal number)	6	No		4.5
CT	Gearbox Oil Synthetic	Gearbox Oil Synthetic	string	0-9 and .(decimal number)	6	No		4.5
CU	Hydraulic Fluid	Hydraulic Fluid	string	0-9 and .(decimal number)	6	No		4.5
CV	Long Life Oil	Long Life Oil	string	0-9 and .(decimal number)	6	No		4.5
CW	Mineral Oil	Mineral Oil	string	0-9 and .(decimal number)	6	No		4.5
CX	Other Fluid	Other Fluid	string	0-9 and .(decimal number)	6	No		4.5
CY	Power Steering Fluid	Power Steering Fluid	string	0-9 and .(decimal number)	6	No		4.5
CZ	Refrigerator Coolant	Refrigerator Coolant	string	0-9 and .(decimal number)	6	No		4.5
DA	Suspension Fluid	Suspension Fluid	string	0-9 and .(decimal number)	6	No		4.5
DB	Merchant Fee	Merchant Fee	string	No validation present	-	No		-
DC	Account System Reference	Account System Reference	string	A-Z,0-9	8	No		ABC123
DD	Service And Maintenance Repair	Service And Maintenance Repair	string	Y or N	1	No	N	Y
DE	Accident Management Body Shop	Accident Management Body Shop	string	Y or N	1	No	N	Y
DF	Tyres	Tyres	string	Y or N	1	No	N	Y
DG	Glass	Glass	string	Y or N	1	No	N	Y
DH	MOT	MOT	string	Y or N	1	No	N	Y
DI	Breakdown	Breakdown	string	Y or N	1	No	N	Y
DJ	Car	Car	string	Y or N	1	No	N	Y
DK	Commercial Under 3_5 tonne	Commercial Under 3_5 tonne	string	Y or N	1	No	N	Y
DL	Commercial Over 3_5 tonne	Commercial Over 3_5 tonne	string	Y or N	1	No	N	Y
DM	HGV	HGV	string	Y or N	1	No	N	Y
DN	MotorBikes	MotorBikes	string	Y or N	1	No	N	Y
DO	Electric vehicles Car	Electric vehicles Car	string	Y or N	1	No	N	Y
DP	Electric vehicles LCV	Electric vehicles LCV	string	Y or N	1	No	N	Y
DQ	Wash and Vac	Wash and Vac	string	Y or N	1	No	N	Y
DR	Complimentary Refreshments	Complimentary Refreshments	string	Y or N	1	No	N	Y
DS	WiFi	Wifi	string	Y or N	1	No	N	Y
DT	Parking	Parking	string	Y or N	1	No	N	Y
DU	Disposal Charges	Disposal Charges	string	Decimal Number(format should be 00.00)	-	No		99.47
DV	Valve	Valve	string	Decimal Number(format should be 00.00)	-	No		99.47
DW	Wheel Balance	Wheel Balance	string	Decimal Number(format should be 00.00)	-	No		99.47
DX	Serving Proximity	Serving Proximity	string	should be a number between '0' and '999' (if serving proximity is not added, then 50 miles will be used as default)	3	No		955
DY	Wheel Alignment2	Wheel Alignment2	string	Decimal Number(format should be 00.00)	-	No		99.47
DZ	Wheel Alignment4	Wheel Alignment4	string	Decimal Number(format should be 00.00)	-	No		99.47
EA	Rebate Amount	Rebate Amount	string	Decimal Number(format should be 00.00)	-	No	0	99.47
EB	Rebate Percentage	Rebate Percentage	string	Decimal Number(format should be 00.00)	-	No	0	99.47

Importing a file

Preparation

Create a new branch with Jira task number in the branch name
Delete all the files within the importFiles folder to prevent accidental import of incorrect files
Create a folder with the current sprint number
Copy the file that needs to be imported
Go to package.json , find the line validate:suppliers
Modify --leaseId with the required lease Id
Modify --file with the relative path of the file
Modify --leaseCompanyName as per the lease Id
Modify --locale to en_GB or en_IE. Locale will be en_GB by default
Save the package.json

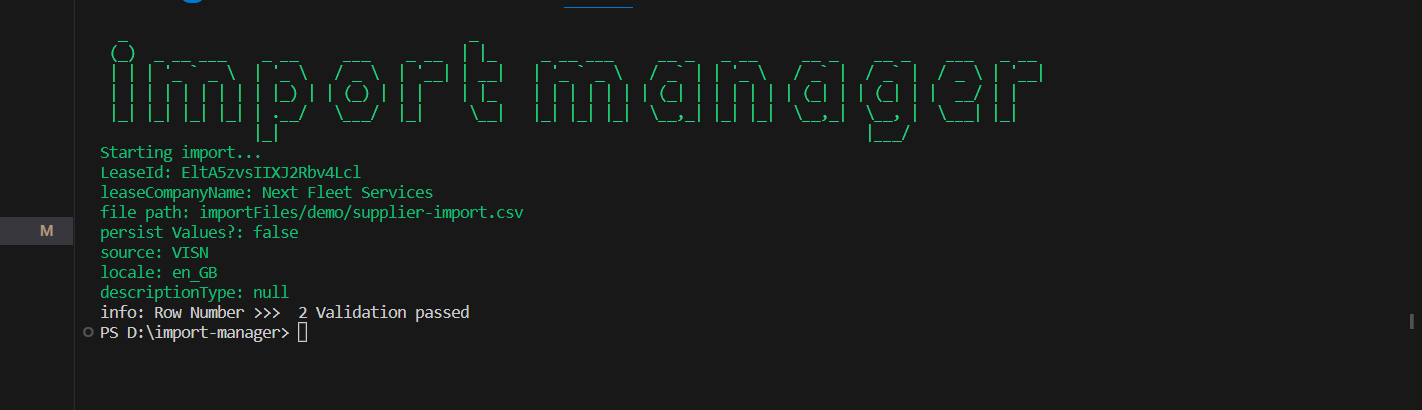

Validating locally

in a terminal run npm run build
in a terminal run npm run validate:suppliers
If there are no errors, push the code

Validating in workflow

Go to Action of Import-manger
Find <Environment> - on-demand-import
Select the branch that was created for this import
Enter script name as validate:suppliers
Leave Overrides empty or you can specify --leaseId, --leaseCompanyName or --locale if required

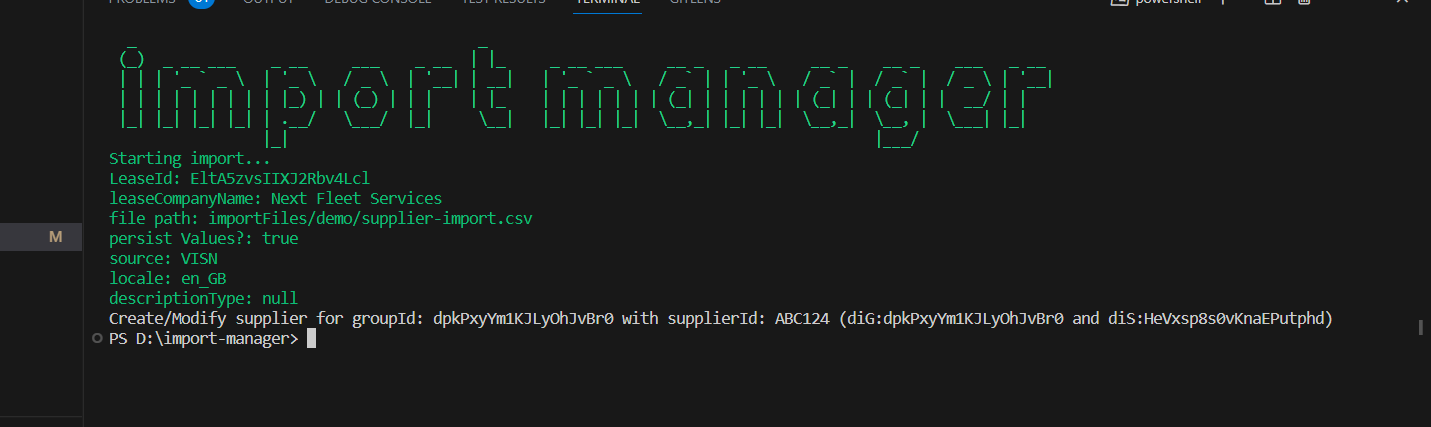

Importing the file

If the validation has passed
Go to Action of Import-manger
Find <Environment> - on-demand-import
Select the branch that was created for this import
Enter script name as validate:suppliers
Enter --persist in Overrides field

Importing the file via url(using postman and cloud run)

we can also import the file using cloud run. Go to import manager and run action DEV - deploy to cloud run with the latest branch.
Go to cloud run(google cloud console) and select import-manager from the services list.
Copy the url https://import-manager-36r2bu4izq-uc.a.run.app (This might vary for different environments)

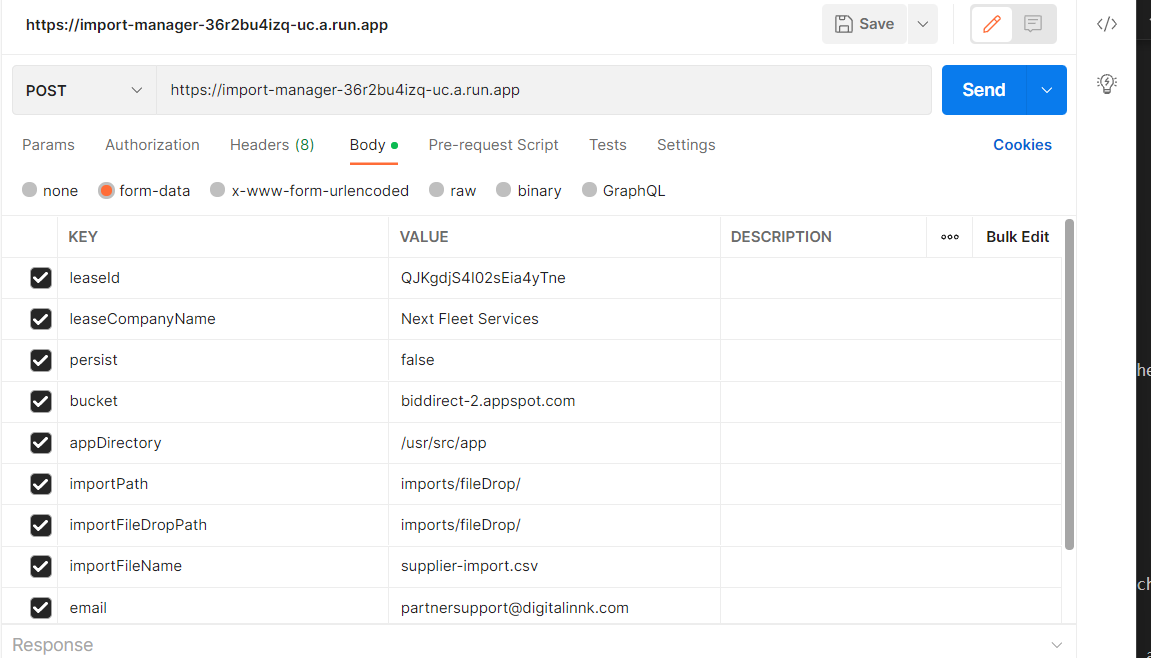

Go to postman and paste this url in a post request. Then add the necessary parameters in Body->formData. Please refer image below for parameters to pass.

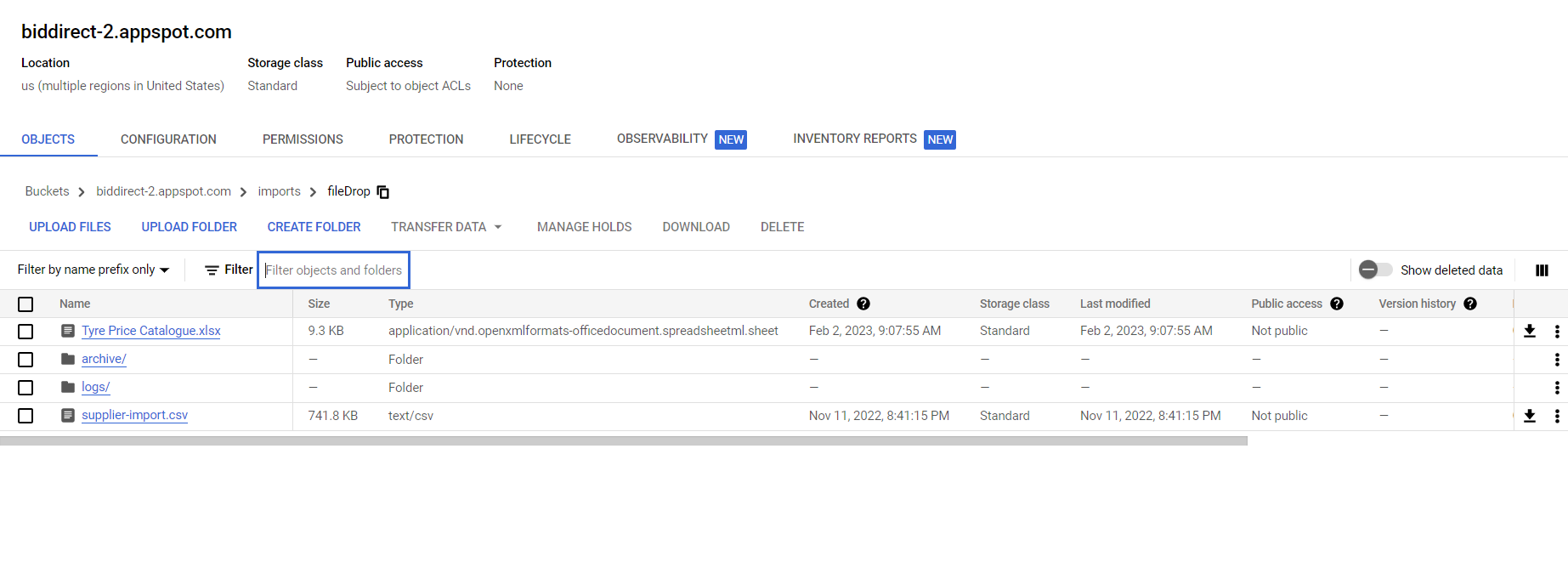

Upload the file in cloud storage(google cloud console) in the path imports/fileDrop/. Press the upload button to choose the file to import

After uploading run the request using postman. Set the persist parameter to false to validate the file and set it as true to import the file from cloud storage

Testing

Suppliers will be created under the specified group Id. This can be checked in the list of suppliers which belong to the group in DI Admin

Status: Pending Approval
Category: Protected
Authored By: Vignesh Kanthimathinathan on May 31, 2023

Revisions
Jan, 2024 - Revise to add FNP band and has FNP, VN-10825
Apr, 2025 - Removed a few fields, VN-17231
Apr, 2025 - Added specialist services and opening hours, VN-17292 - Hadley
Oct, 2025 - Added Franchise Preference Code and Franchise Preference Name, VN-20909 - Rushikesh

Introduction​

Fields​

Visn Supplier Import​

Importing a file​

Preparation​

Validating locally​

Validating in workflow​

Importing the file​

Importing the file via url(using postman and cloud run)​

Testing​

Introduction

Fields

Visn Supplier Import

Importing a file

Preparation

Validating locally

Validating in workflow

Importing the file

Importing the file via url(using postman and cloud run)

Testing
